    Roll Mill

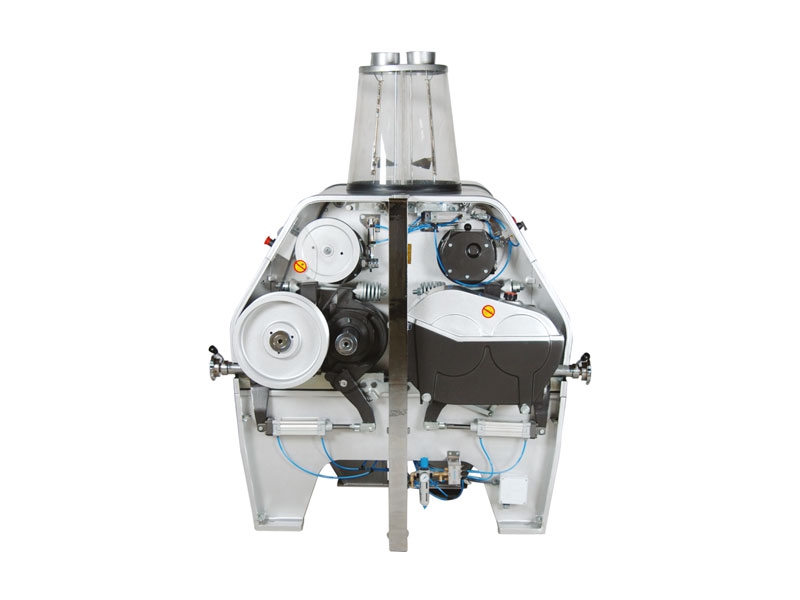

The grain to be grinded enters the vaulting machine through the product inlet chamber and reaches the rolls of waltz through the countersunk rollers. With the aid of capacitive level sensors or Loadcell, the amount of grain distributed to the rolls of waltzes can be adjusted via the subsidiary country. Vals The pneumatic system is used for placing / removing the balls and adjusting the distance between the balls. The fine adjustment arms can be equipped with an electric system with step or servo motors, and a homogeneous product flow between the cylinders is achieved thanks to the special air channel system.

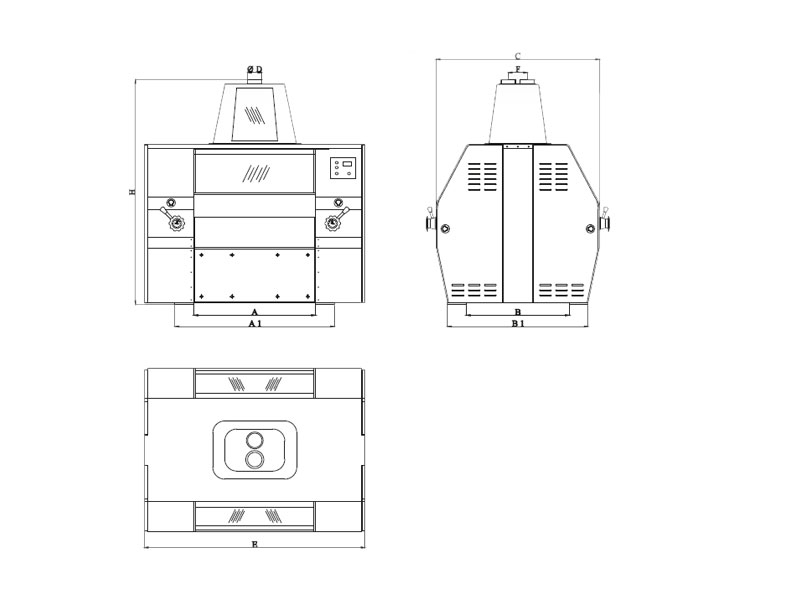

DIMENSIONS ROLLER WEIGHT MOTOR
TYPE (mm) Diameter Lenght
A B C (mm) (mm) (kg) (kw)
500 800 1660 250 800 2800 ACCORDING TO DIAGRAM
STR-4 500 1000 2010 250 1000 3100
800 1250 2265 250 1250 3350
500 800 1800 250 800 5600
STR-8 500 1000 2010 250 1000 5850
800 1250 2265 250 1250 6100
