Elevatör head bolted sheet - Steel construction with two piece removable hood wear resistant liner. Rubber - lagged, head pulley, including roller bearings. Elevatör boot with 1 feed - inlet and 2 clean - out openings. Pulley, roller bearings and belt take - up device with spindle. With necessarry pairs of casing sections in Standard and make - up lengths, including the belt - access casing section, tor self - supporting design. Elevatör belt with white PVC layer, oil - resistant and antistatic.
| TYPE |
DIMENSIONS |

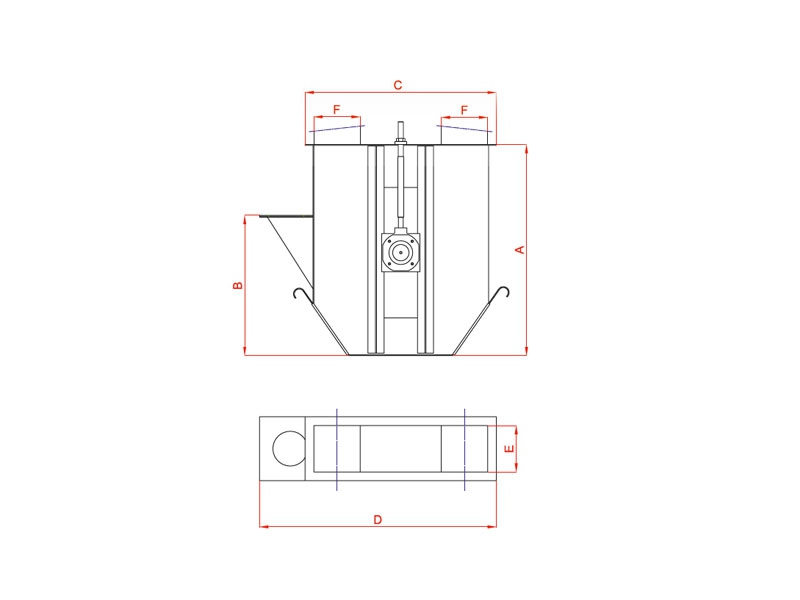

BOTTOM HEAD |

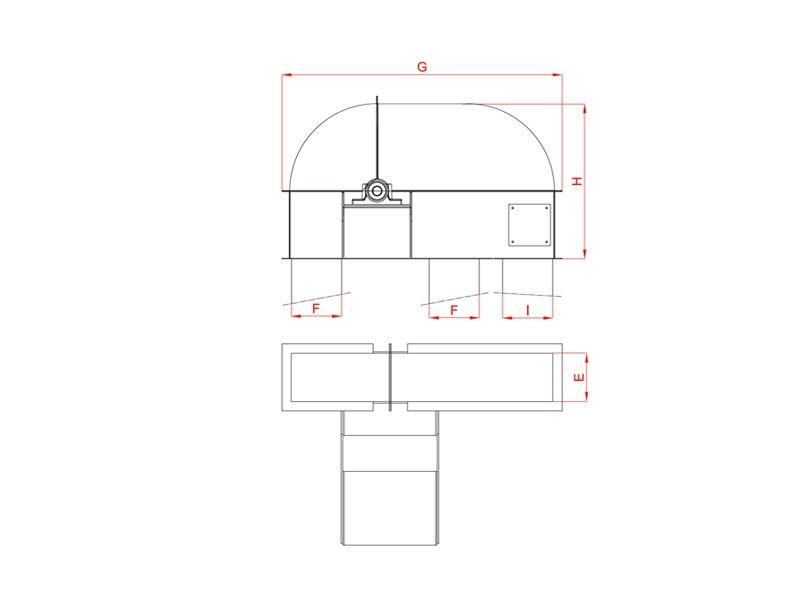

TOP HEAD |
| (mm) |
WEIGHT |
WEIGHT |
| A |
B |
C |
D |
E |
F |
G |
H |
I |
(kg) |
(kg) |
| STR 16 x 16 |
771 |
620 |
666 |
820 |
160 |
160 |
914 |
575 |
160 |
84 |
84 |
| STR 22 x 22 |
925 |
758 |
866 |
1075 |
220 |
220 |
126 5 |
700 |
270 |
130 |
130 |
| STR 25 x 25 |
1150 |
895 |
986 |
1220 |
250 |
250 |
1444 |
800 |
320 |
165 |
165 |
| STR 30 x 30 |
1250 |
978 |
1086 |
1335 |
300 |
300 |
1646 |
900 |
400 |
174 |
174 |
| STR 35 x 35 |
1355 |
1135 |
1388 |
1730 |
350 |
350 |
2022 |
1300 |
450 |
375 |
375 |
| STR 35 x 40 |
1304 |
1088 |
1380 |
1727 |
400 |
350 |
2022 |
1296 |
450 |
410 |
410 |
| TYPE |
BUCKET |
BELT (mm) |
POULEY (Φ) |
BUCKET (unit/m) |
| STR 16 x 16 |
100 |
120x4 |
135 X 340 |
4 |
| STR 22 x 22 |
160 |
180x5 |
190 X 450 |
4 |
| STR 25 x 25 |
180 |
200x5 |
210 X 450 |
4 |
| STR 30 x 30 |
240 |
260x6 |
270 X 500 |
4 |
| STR 35 x 35 |
280 |
300x6 |
310 X 700 |
4 |
| STR 35 x 40 |
340 |
360x8 |
370 X 700 |
4 |
