Tube Screw Conveyor
Tube Screw Conveyor
  • Tube Screw Conveyor
    Tube Screw Conveyor

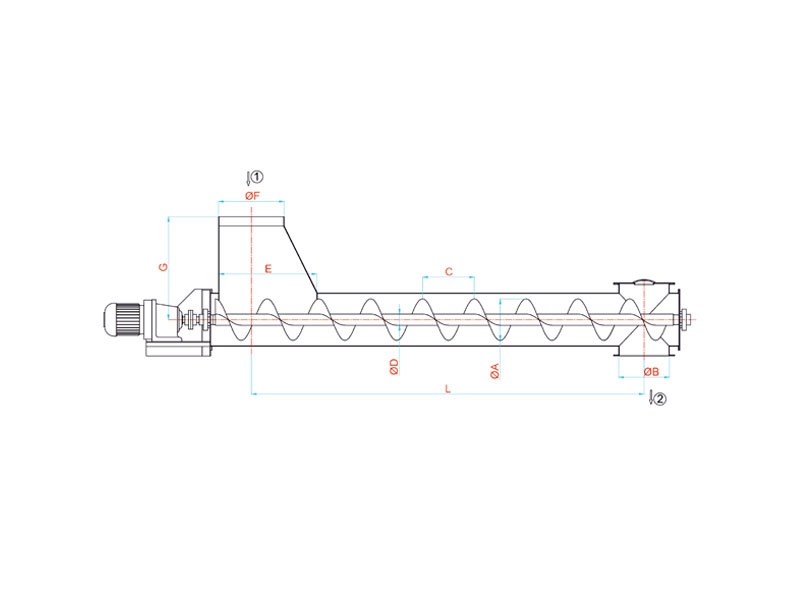

Type Dimensions (mm) Capacity 80 rpm
ΦA ΦB C ΦD E ΦF G L Wheat Flour Bran
STR 150 150 180 150 42 700 500- 300 550 X 9 6.5 4
STR 180 180 205 180 42 700 500- 300 550 X 15 10 7
STR 200 200 225 200 48 700 500- 300 550 X 20 15 10
STR 250 250 280 250 60 700 500- 300 550 X 40 30 20
STR 300 300 335 300 76 700 500- 300 550 X 60 45 28
