You have lot of altemative to hang sifter with hanging rods, it is easy to hang minimum heights. You can pt boxes in place under the string course, soyou can work any type of sifter.

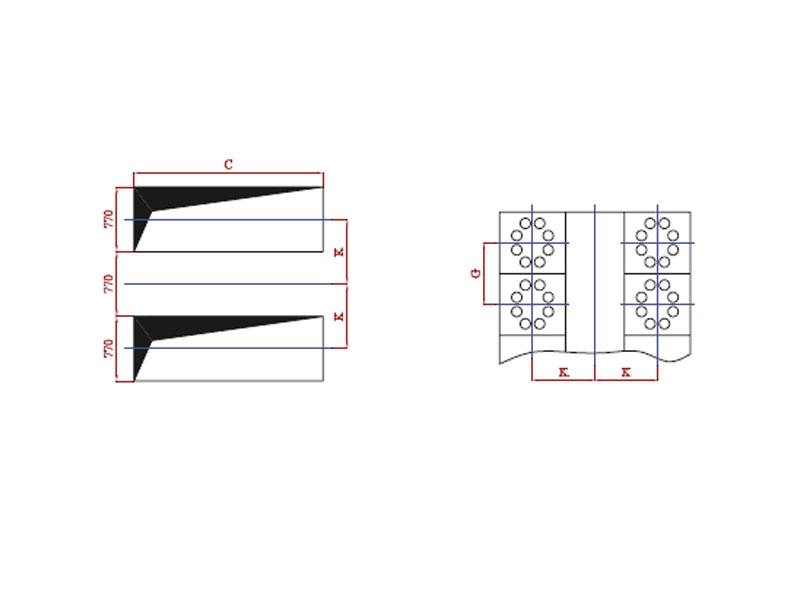

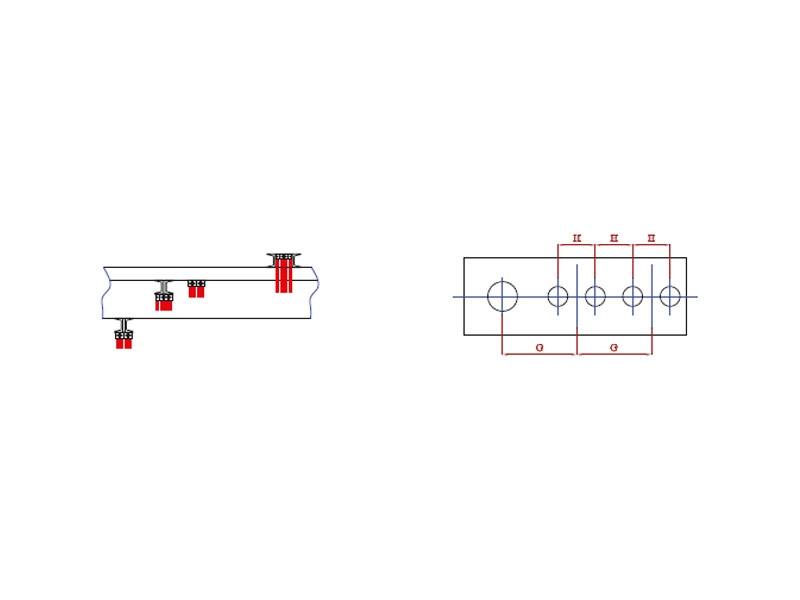

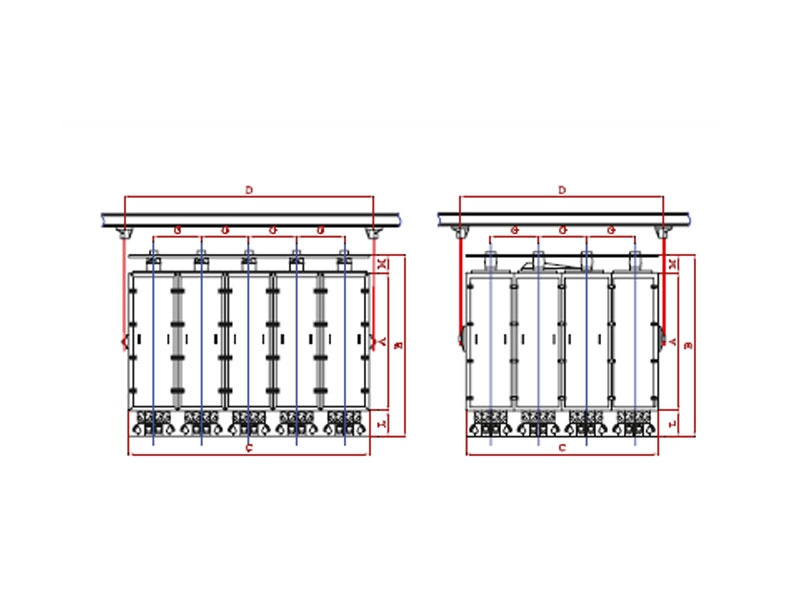

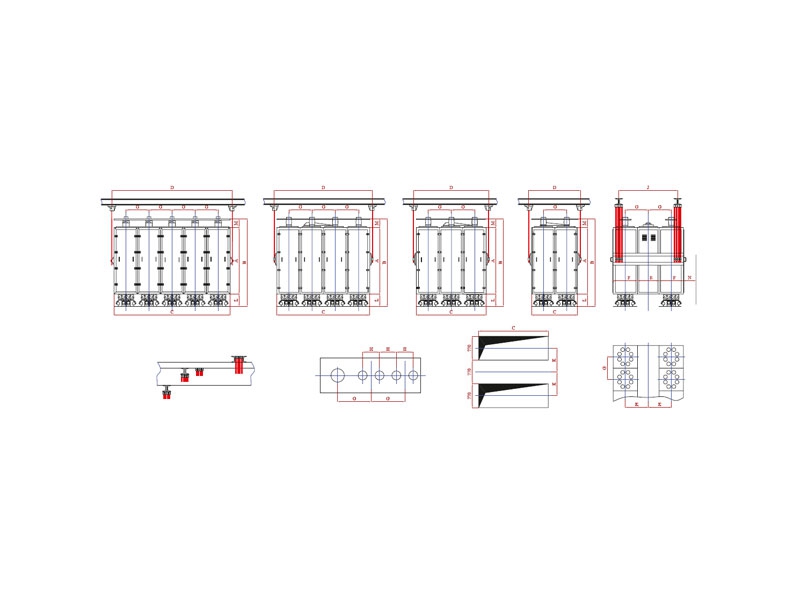

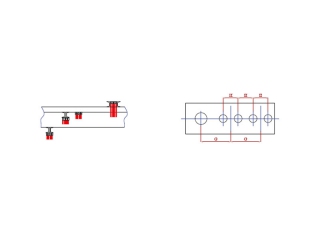

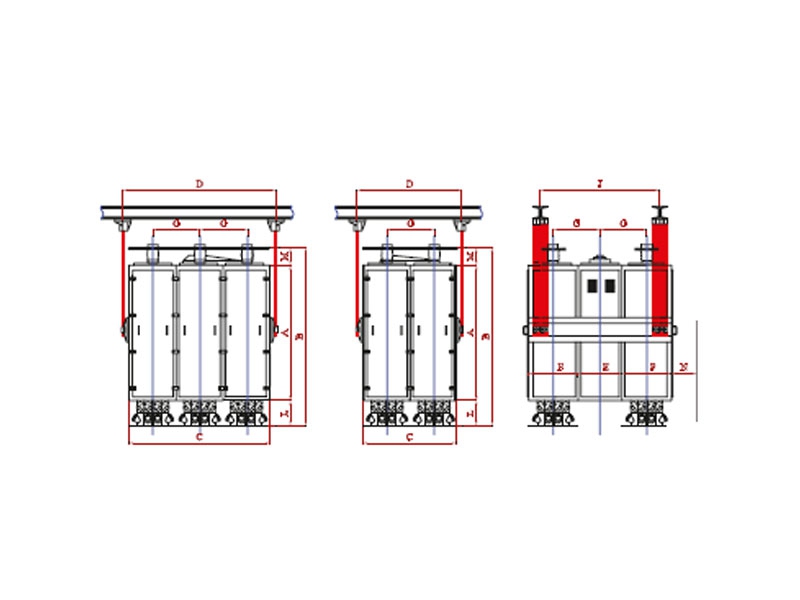

TYPE A B C D E F G H J K L M N
STR4/24 1850 2530 1500 1670 700 785 740 360 1900 740 400 280 900
STR4/28 2150 2830 1500 1670 700 785 740 360 1900 740 400 280 900
STR 6/24 1850 2530 2245 2430 700 785 740 360 1900 740 400 280 900
STR 6/28 2150 2830 2260 2430 700 785 740 360 1900 740 400 280 900
STR 8/24 1850 2530 2985 3155 700 785 740 360 1900 740 400 280 900
STR 8/28 2150 2830 2985 3155 700 785 740 360 1900 740 400 280 900
STR6/27-32 JUMBO 2300 2980 2592 2766 807 862 856 440 1900 860 400 280 1200
STR8/28-30 JUMBO 2260 3360 3385 3564 807 862 845 430 1800 860 400 280 1200

TYPE PASSAGE NUMBER CASE DIMENSION SIEVE AREA iN MOTOR WEIGHT
mmxmm m2 kw kg
STR 4/24 4 640x640 190-24,5 4 kw 1000 2500
STR 4/28 4 640x640 21,1-25,6 4 kw 1000 2750
STR 6/24 6 640x640 29-32,3 5,5 kw 1000 3260
STR 6/28 6 640x640 33,2-39,3 5,5 kw 1000 3710
STR 8/24 8 640x640 37-43,8 7 ,5 kw 1000 4025
STR 8/28 8 640x640 44,3-51,8 7,5 kw 1000 5500
STR 6/27 -32 JUMBO 6 740x740 58,2-69,2 7,5 kw 1000 5500
STR 8/27 -32JUMBO 8 740x740 78,0-92,7 11 kw 1000 6600
