It is used as an impact dispeller in some passages of the flour mills. Completely metal-constructed. it can be mounted by way of hanging on the ground or ceiling. The circular body is fixed. It rotates together with the dispeller on the rotor. Breaker pins are not available. It can be mounted on the pneumatic passages or under the roller. The rotating rotor is directly connected to the motor shaft. ( 4 kw -5.5 kw ) Flanged motor is used.

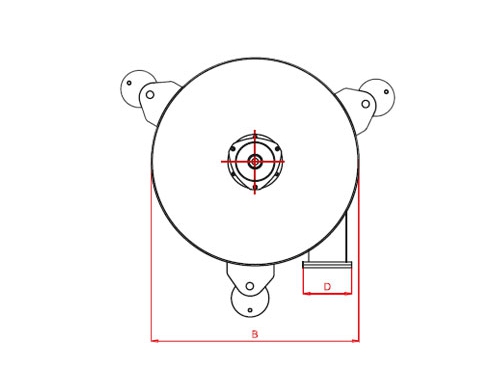

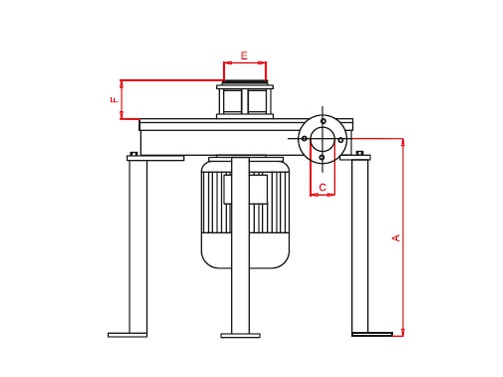

TYPE | DIMENSIONS | MOTOR | WEIGHT | CAPACITY | |||||
(mm) | 3000 rpm | ||||||||
A | B | C | D | E | F | (kw) | (kg) | (T/h) | |
STR 5,5 | 580 | 610 | 70 | 140 | 120 | 110 | 5,5 | 158 | 2,5 |
STR 7,5 | 580 | 610 | 70 | 140 | 120 | 110 | 7,5 | 165 | 3 |
