Stone Seperator
Stone Seperator
  • Stone Seperator
    Stone Seperator
  • Stone Seperator
    Stone Seperator

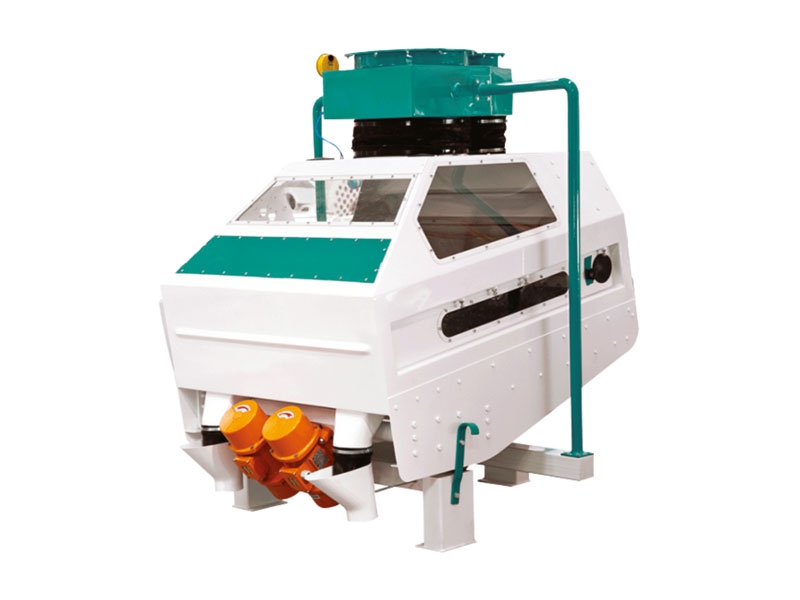

Dry stoners are used in the flour milis tor the separation of the materials with specific weight different than wheat such as stone, metal, glass and soil available within the wheat. Especially, it is an indispensable machine in the cleaning units of dry system. Stone and similar materials may easily enter into wheat. lf a process of separation of these materials from the wheat is not done, the values of ash rate in the flour come up high as a result of grinding. This is an undesirable feature.

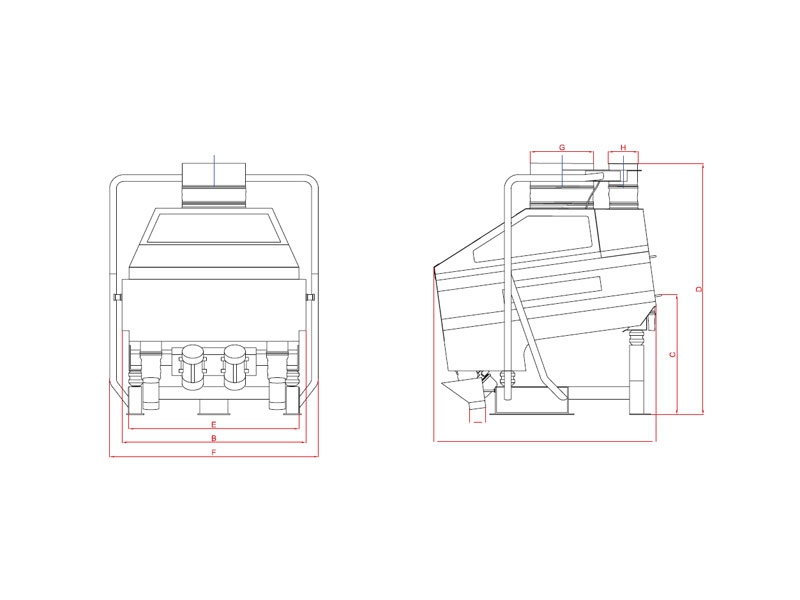

TYPE DIMENSIONS (mm) VIBRO MOTOR (kw) WEIGHT (kg) CAPACITY (T/h) SIEVE DIMENSION (Piece/mm)
A B C D E F G H J
STR 60-T 1565 1300 715 1485 1210 1545 450 120 120 2 x MVE 300/10 0,25kw 585 5 800x1290x400x1290
STR 120-Ç 1565 1300 715 1740 1210 1545 450 200 120 2 x MVE 500/10 0,35kw 695 10..15 2x800x1290 2x400x1290
