    Dust Cyclone

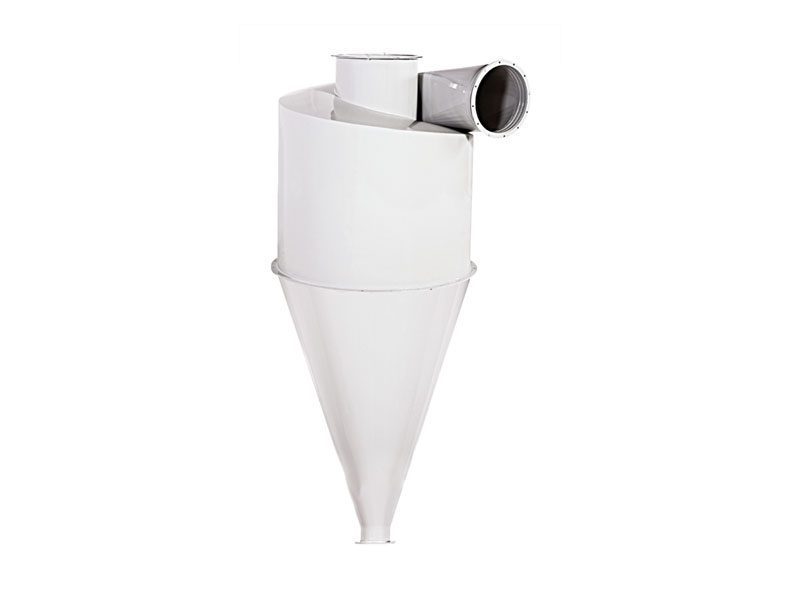

For seperation of dust from the aspiration air cone in steel sheet construction.Tangential air in take about and Central air exhaust pipe. Matching counter flanges, gaskets and bolts without exhaust hood.

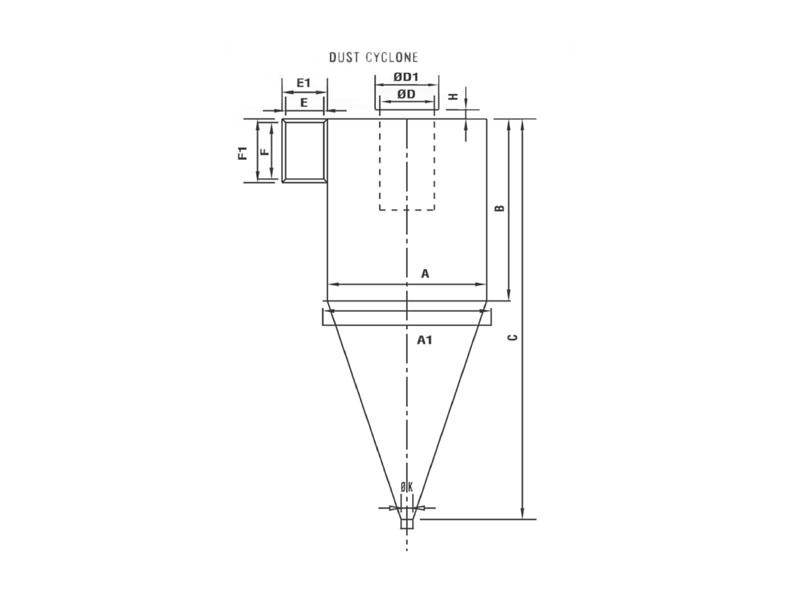

TYPE STR 1200 1350 1500 1750
A 1200 1350 1500 1750
A1 1300 1450 1600 1850
B 1400 1500 1550 2000
C 2900 3100 3150 4400
D 500 600 630 700
D1 600 700 730 800
E 400 500 550 500
E1 500 600 650 600
F 400 500 550 700
F1 500 600 650 800
H 100 100 100 100
K 120 120 120 120
Weight 288 324 360 420
Air m3 2.4 3.3 4.1 5.1

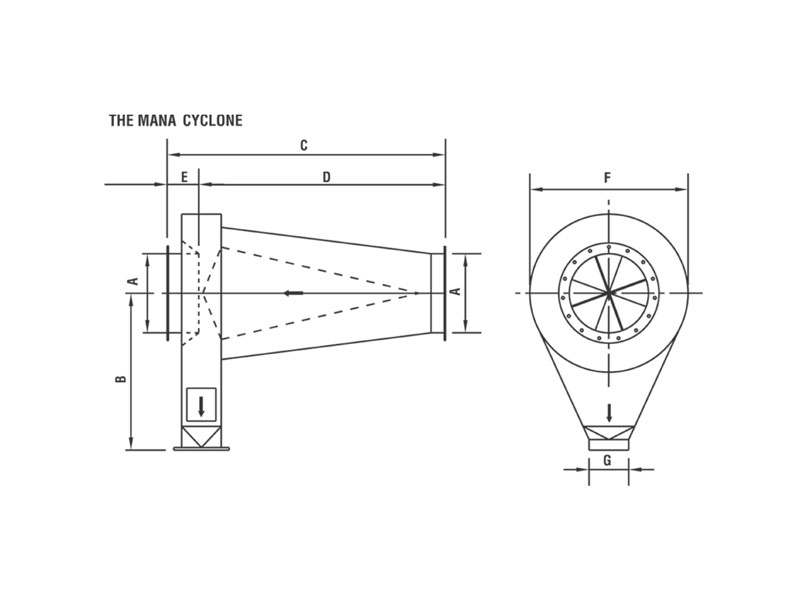

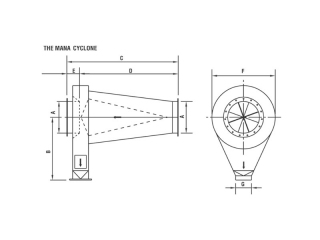

TYPE DIMENSIONS (mm) WEIGHT (kg)
ΦA B C D E ΦF ΦG NET GROSS
STR-30 300 540 915 780 135 504 150 65 75
STR-35 350 635 1035 900 135 664 150 69 80
STR-40 400 720 1135 1000 135 744 150 80 92
STR-50 500 880 1315 1100 135 906 150 105 120
