Vertical Wash Combine
Vertical Wash Combine
  • Vertical Wash Combine
    Vertical Wash Combine
  • Covers are made of 1,2 mm chrome nickel stainless steel.
  • Washing and Drying section operate apart.
  • There are two mixer and Stone separator screw in the washing section of the machine.
  • The spirals provide the mixing of the wheat and water, so straw, dust,Stone, foreign materials are separated from wheat.
  • Wheat which is transferred to the drying section is rubbed dried and transferred to the outlet.

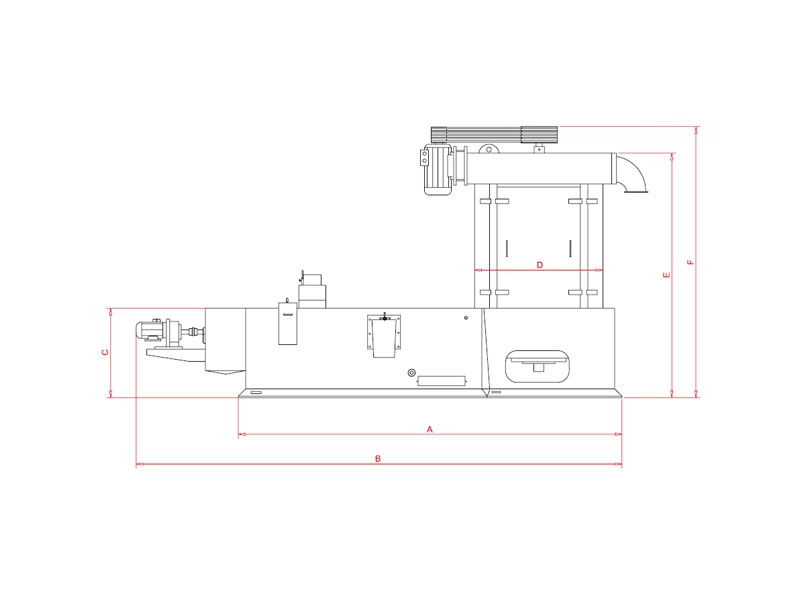

TYPE DIMENSIONS (mm) MOTOR (kw) GEARMOTOR (kw/rpm) WEIGHT (kg) CAPACITY (T/h)
A B C D E F
STR DY-6 2860 3840 530 900 1970 2240 7,5 1,1 Kw 160 rpm 1100 2,5-3,5
STR DY-8 2750 3760 650 1100 2000 2350 11 1,1 Kw 160 rpm 1560 4-6
STR DY-12 2900 3900 650 1250 2100 2370 15 1,5 Kw 160 rpm 2030 10-12
STR DY-6 INOX 2860 3840 530 900 1970 2240 7,5 1,1 Kw 160 rpm 1100 2,5-3,5
STR DY-8 INOX 2750 3760 650 1100 2000 2350 11 1,1 Kw 160 rpm 1560 4-6
STR DY-12 INOX 2900 3900 650 1250 2100 2370 15 1,5 Kw 160 rpm 2030 10-12
