    Pneumatic Cyclone & Air Lock

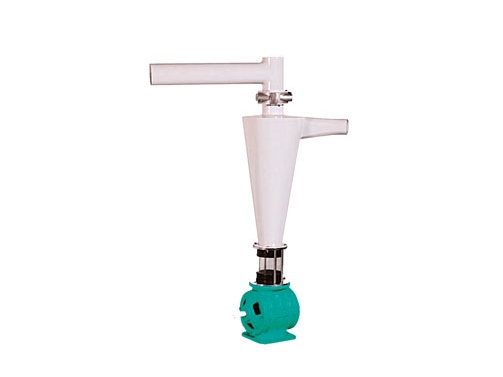

The Pneumatic Cyclone Group, which is used in grain, cereal and food processing plants, is used in conveying equipment. is a system.

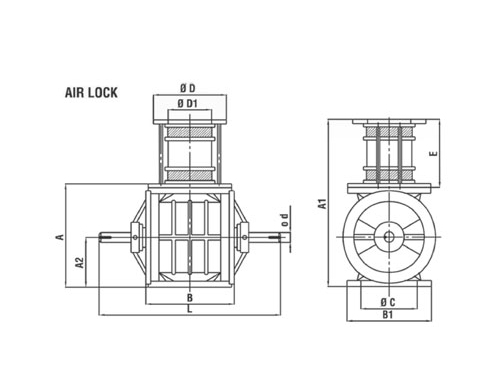

TYPE A A1 A2 B B1 ΦC ΦD ΦD1 Φd E L d/ d rpm WEIGHT (kg) CAPACITY t/h
STR-220 250 525 145 245 250 170 250 130 3 0 220 525 63 62 5.52
STR-240 305 525 155 255 250 170 250 130 3 0 220 530 63 71 8.64

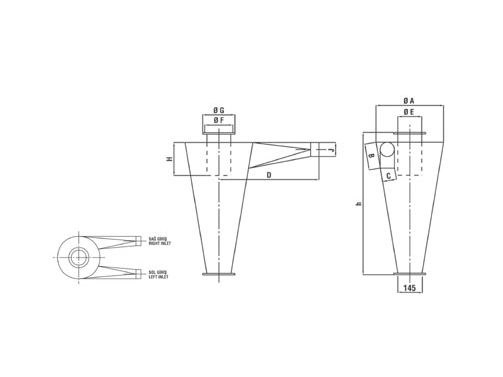

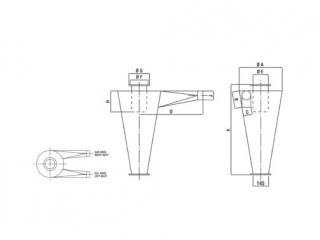

TYPE DIMENSIONS (mm)
h ΦA B C D ΦE ΦF ΦG H J(Di) n
STR-16 800 160 60 32 320 55 85 110 100 40-46-51
STR-20 " 200 77 40 320 70 100 120 120 46-51-57-64
STR-24 " 240 95 48 450 85 125 145 140 57-64-70-76 4x*12
STR-28 " 280 113 56 450 100 148 170 160 64-70-76-83-94
STR-34 " 340 135 68 475 120 172 195 180 76-83-94-102
STR-41 " 410 164 82 600 145 190 220 210 94-102-108-119
STR-50 " 500 205 100 700 180 225 250 280 108-119-133 8x*12
STR-50 1350 500 205 100 700 180 225 250 280 102-108-119-133
